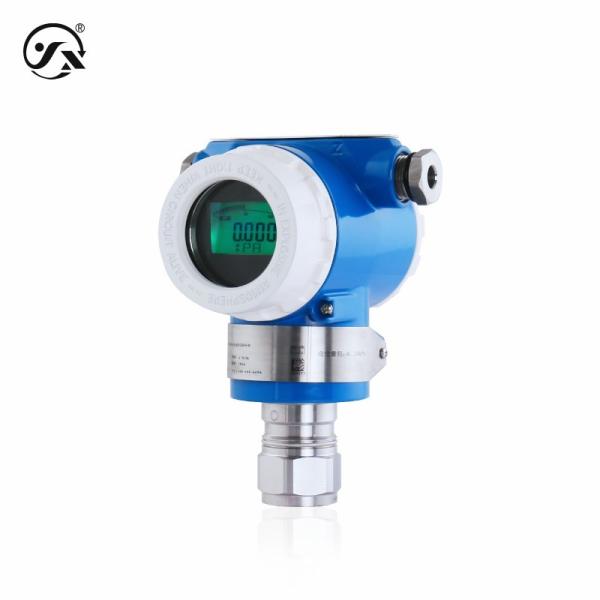

CYYZ3051ZAY Monocrystalline Silicon Direct-Mount Pressure Transmitter Range 0~1kPa~10MPa Output: 4~20mA HART

Brand Name : Star merter

Model Number : CYYZ3051ZAY

Place of Origin : China

MOQ : 1PC

Price : Negotiation

Payment Terms : T/T

Supply Ability : 30000 Piece/Month

Range : 0~1kPa~10MPa

Output : 4~20mA HART

Power supply : 12~32VDC, 15~24VDC

Accuracy : ±0.075% SPAN, ±0.1% SPAN, ±0.2% SPAN

Name : Pressure Transmitter Sensor

Contact Now

CYYZ3051ZAY monocrystalline silicon direct-mount pressure transmitters use monocrystalline silicon resonant sensor technology. Suitable for measuring the pressure of liquids, gases or vapors. It has a variety of explosion-proof functions, intrinsically safe type, dust intrinsically safe type, flameproof type, and flameproof dust type.

Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
pressure type Absolute pressure, gauge pressure
Medium temperature -40～110℃
output signal 4-20mA HART protocol
Power supply range 12～32VDC, 15～24VDC (intrinsically safe and explosion-proof only)
Maximum power ≤0.02Us(W)
connection time 20ms
Stable performance ±0.05%URL/year
Explosion-proof level Explosionproof type Ex d Ⅱ C T6 Gb
Explosionproof dust type Ex tb IIIC T80℃ Db
Intrinsically safe type Ex ia ⅡC T6 Ga
dust intrinsically safe type Ex ia ⅢC T200 80℃ Da
Note: Intrinsic safety must be passed through a safety barrier or intrinsically safe power supply powered by
Protection level IP66
Note: The above protection level refers to the level achieved after the electrical connection is complete.
response frequency The time constant is adjustable, in increments of 0.1 seconds, from as low as 32 seconds. If the damping time is 0, the default is 0.1 (the lowest is 0.1).
overall weight ≈1.55kg
Load characteristics
HART current type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
environmental conditions
No LCD liquid crystal display ambient temperature -40～85℃
With LCD display ambient temperature -20～70℃
environment humidity 0%～95%RH (no condensation, no condensation)
overall material
Diaphragm 316L stainless steel/Hastelloy C/tantalum (contact with the measured medium)
O-ring Fluorine rubber (contact with measured medium)
Filling fluid Silicone oil, fluorine oil
Thread material 316L stainless steel (contact with measured medium)
case die cast aluminum
display window ≈6mm explosion-proof glass
mechanical stability
Anti-vibration performance 10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but doesn’t work
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output limits
Output minimum 3.8mA
Output maximum 22mA
